8W/Mk Thermal Conductive Silicone Pad for for All-in-One Computers, Laptops, Industrial Computers CPU/GPU, Graphics Card Modules

8W/Mk Thermal Conductive Silicone Pad for for All-in-One Computers, Laptops, Industrial Computers CPU/GPU, Graphics Card Modules
Color: dark gray
Customization: available
Base Size:215*415mm
Certificate: ISO 9001/14001/IATF 16949/UL
Thickness: 0.5~18mm
Material: silicone
Thermal Rating: -40~150°C
Thermal Conductivity: 8W/Mk
Color: dark gray
Customization: available
Base Size:215*415mm
Certificate: ISO 9001/14001/IATF 16949/UL
Thickness: 0.5~18mm
Material: silicone
Thermal Rating: -40~150°C
Thermal Conductivity: 8W/Mk
Contact Us
8W/Mk Thermal Conductive Silicone Pad for for All-in-One Computers, Laptops, Industrial Computers CPU/GPU, Graphics Card Modules Apply For Quotation

CP series

CP800 Silicone Thermal Pad

Thermal conductive silicone pad has certain flexibility, excellent insulation, compressibility and natural viscosity on the surface. It is specially produced for the design scheme of using the gap to transmit heat. It can fill the gap and complete the heat transfer between the heating part and the heat dissipation part. At the same time, it also plays the role of insulation and shock absorption. It is of great manufacturability and usability, and has a wide range of thickness application, which can meet the design requirements of equipment miniaturization and, it is an excellent heat conduction filling material and is widely used in electronic and electrical products.


Product Features

● Good thermal conductivity, low thermal resistance

● Good insulation and flame retardant

● Good surface wettability, natural viscosity

● Good compressibility, long shelf life

● Multiple thickness options, can be made into any size

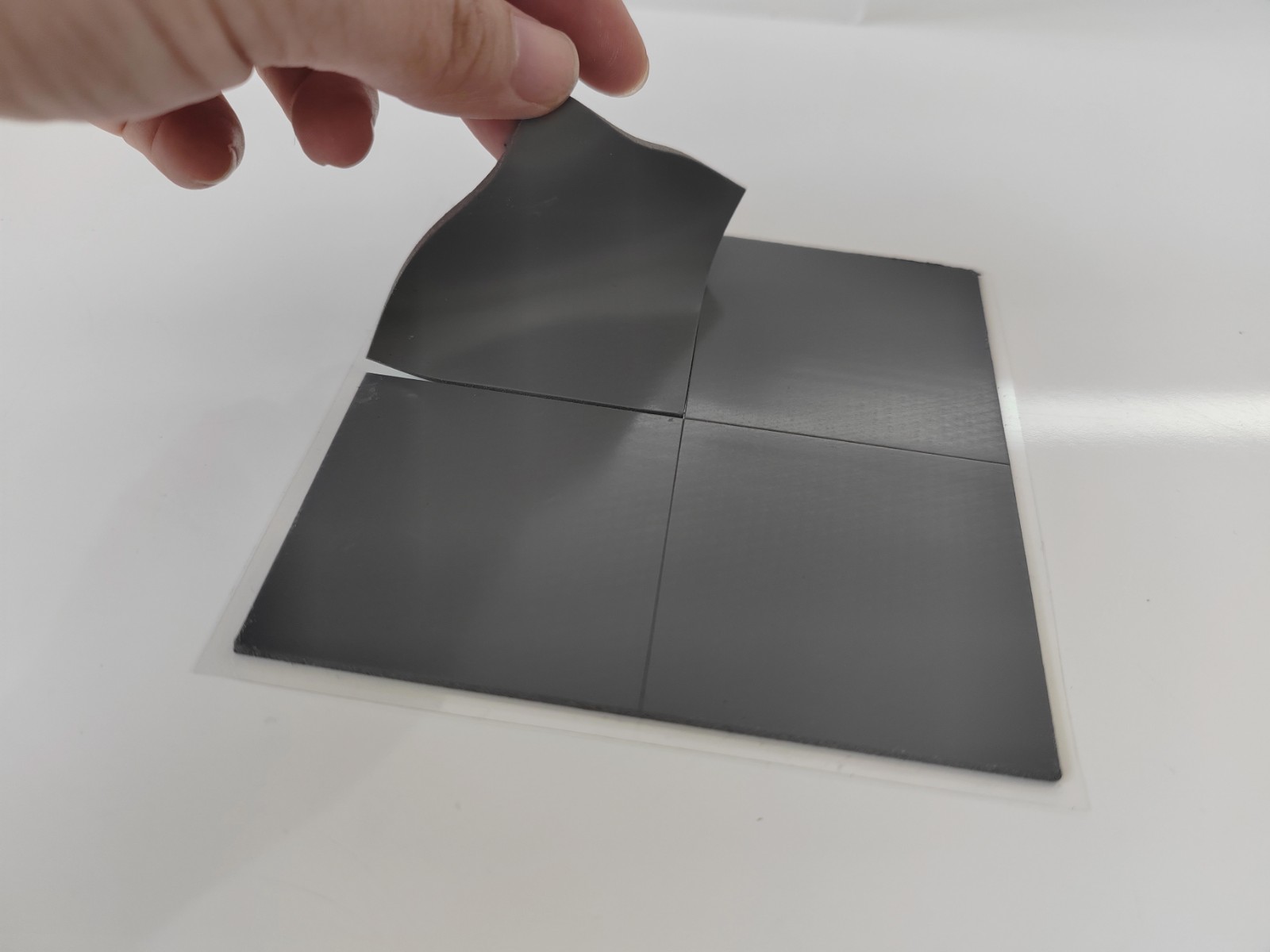

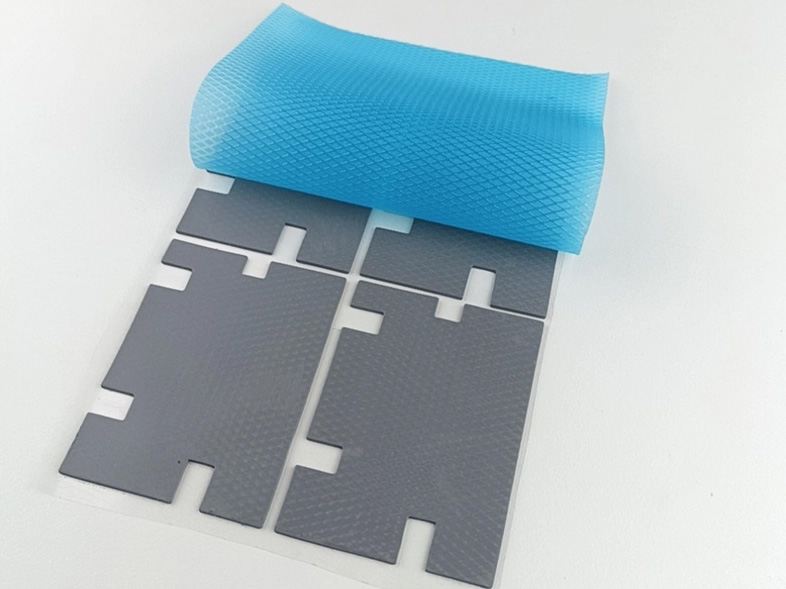

68b7f31da5a1c.jpg  68b7f327af25a.jpg


Product Application

● LED lighting

● Backlight module

● Switching power supply

● Medical equipment

● Communication equipment

● LED TV

● Mobile device

● Video equipment

● 5G network products

● Home appliances

● PC server/workstation

● Base station

68b6d7734708e.jpg  68b6d77c42959.jpg  68b6d78500ff4.jpg


Technical Data Sheet

Test Item

Unit

CP700

CP800

CP900

Test Method

Color

/

Dark Gray

Dark Gray

Dark Gray

Visual

Thickness

mm

0.5~18mm

0.5~18mm

0.5~18mm

ASTM D374

Specific gravity

g/cm3

3.3±0.1

3.6±0.1

3.4±0.1

ASTM D792

Hardness

Shore C

35~50

35~50

35~50

ASTM D2240

Tensile Strength

MPa

≥0.08

≥0.08

≥0.10

ASTM D412

Compression rate

%

5~20

5~15

5~15

ASTM D412

Temperature   resistance range

-40~+150

-40~+150

-40~+150

EN 344

Volume resistance

Ω-CM

≥1.0*1013

≥1.0*1013

≥1.0*1013

ASTM D257

Withstand voltage

KV/mm

≥6

≥6

≥9

ASTM D149

Flame retardant rating

/

V-0

V-0

V-0

UL 94

Thermal conductivity

w/m.k

7.0±0.7

8.0±0.8

9.0±0.9

ASTM D5470

Oil penetration rate

%

1.0

≤1.0

≤1.0

ASTM G120

Dielectric constant

1MHZ

7.0

7.0

6.0

ASTM D150

Package and Storage:

Standard size: 215*415mm, 400*400mm, customized sizes are available.

Warehousing validity period: 18 months, storage conditions: temperature: 15℃<T<30℃, relative humidity: RH<70%, 5 years shelf life.
