CP series

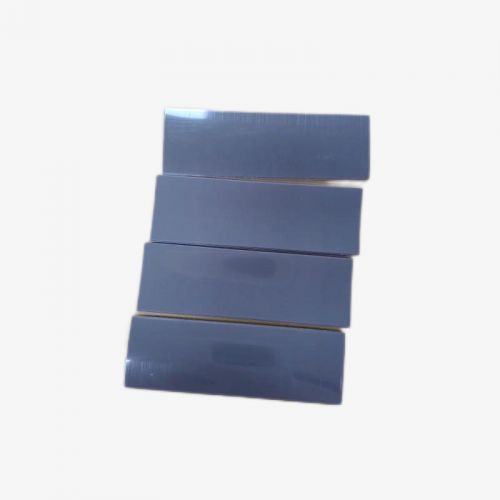

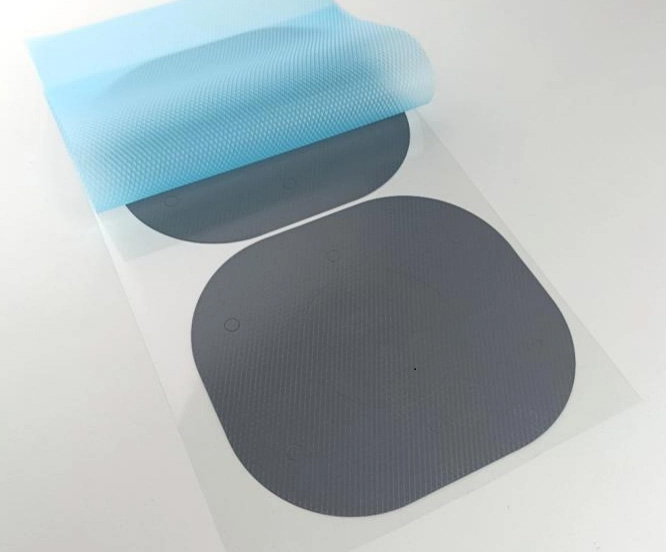

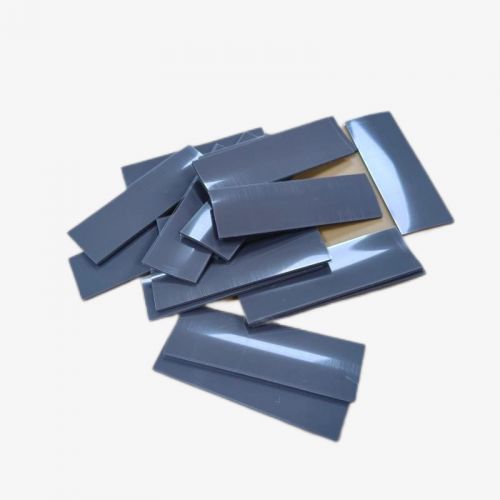

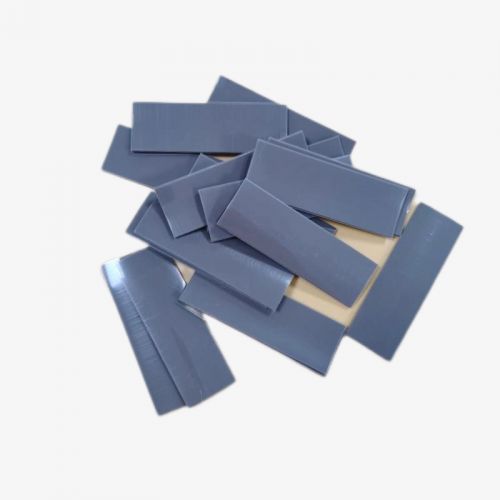

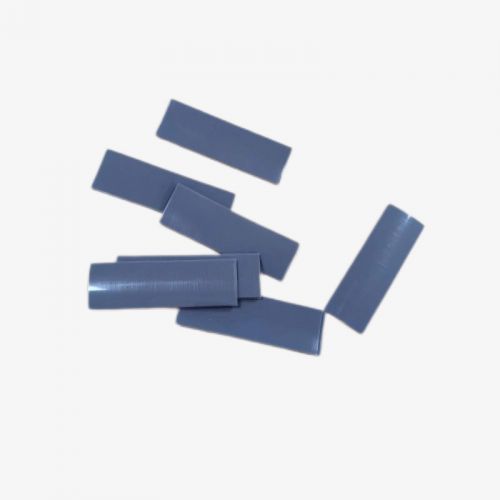

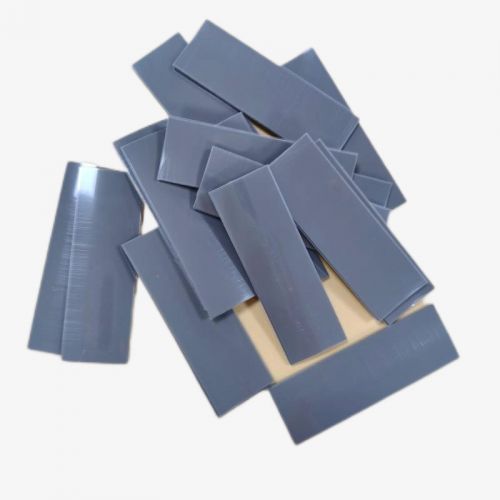

CP600 Silicone Thermal Pad
Thermal conductive silicone pad has certain flexibility, excellent insulation, compressibility and natural viscosity on the surface. It is specially produced for the design scheme of using the gap to transmit heat. It can fill the gap and complete the heat transfer between the heating part and the heat dissipation part. At the same time, it also plays the role of insulation and shock absorption. It is of great manufacturability and usability, and has a wide range of thickness application, which can meet the design requirements of equipment miniaturization and, it is an excellent heat conduction filling material and is widely used in electronic and electrical products.
Product Features
● Good thermal conductivity, low thermal resistance
● Good insulation and flame retardant
● Good surface wettability, natural viscosity
● Good compressibility, long shelf life
● Multiple thickness options, can be made into any size
Product Application
● LED lighting
● Backlight module
● Switching power supply
● Medical equipment
● Communication equipment
● LED TV
● Mobile device
● Video equipment
● 5G network products
● Home appliances
● PC server/workstation
● Base station
Technical Data Sheet
|
Test Item
|
Unit
|
Standard
|
Test Method
|
|
Color
|
/
|
dark gray
|
Visual
|
|
Thickness
|
mm
|
0.3~18mm
|
ASTM D374
|
|
Specific gravity
|
g/cm3
|
3.3±0.1
|
ASTM D792
|
|
Hardness
|
Shore C
|
30~50
|
ASTM D2240
|
|
Tensile Strength
|
MPa
|
≥0.10
|
ASTM D412
|
|
Compression rate
|
%
|
20~30
|
ASTM D412
|
|
Temperature resistance range
|
℃
|
-40~+150
|
EN 344
|
|
Volume resistance
|
Ω-CM
|
≥1.0*1013
|
ASTM D257
|
|
Withstand voltage
|
KV/mm
|
≥6
|
ASTM D149
|
|
Flame retardant rating
|
/
|
V-0
|
UL 94
|
|
Thermal conductivity
|
w/m.k
|
6.0±0.6
|
ASTM D5470
|
|
Oil penetration rate
|
%
|
≤1.0
|
ASTM G120
|
|
Dielectric constant
|
1MHZ
|
≥7.0
|
ASTM D150
|
Package and Storage:
Standard size: 215*415mm, 1100*1000mm, customized sizes are available.
Warehousing validity period: 18 months, storage conditions: temperature: 15℃＜T＜30℃, relative humidity: RH＜70%, 5 years shelf life.
