TM series

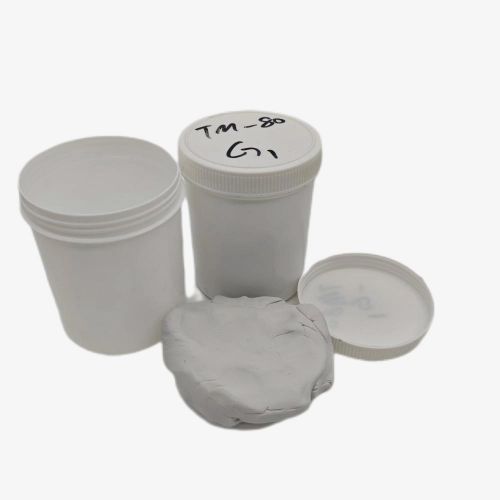

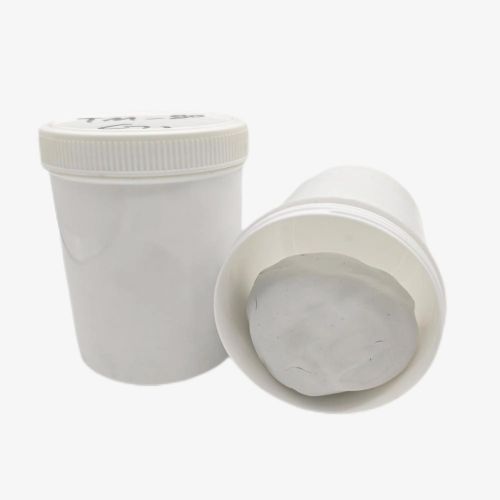

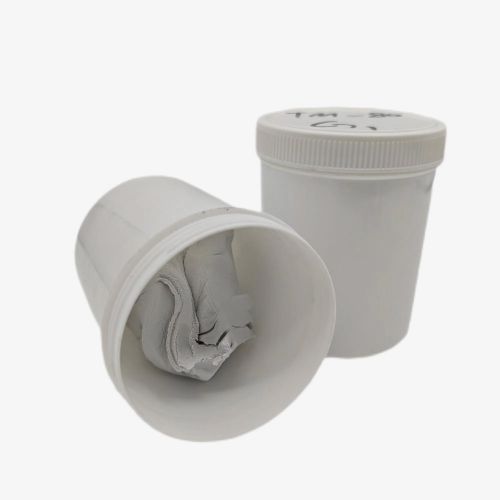

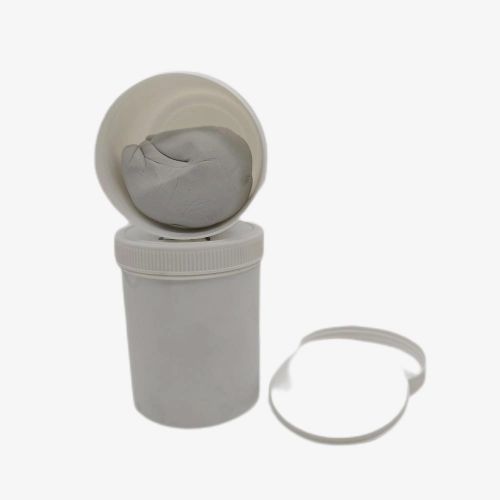

Thermal Mud
The thermal putty, which feels close to plasticine. It is based on silicon gel and filled with a variety of high-performance ceramic powders. Thermal putty has the characteristics of high thermal conductivity, low thermal resistance, good adhesion to heat sink parts, permanent drying, insulation, automatic filling of gaps, maximum limited contact area, infinite compression and so on.
Product Features
● l Excellent electrical insulation
● l Low plasticity and plasticine, easy to cooperate.
● l Non-drying, non-solidification, non-melting, tasteless and non-toxic.
Typical Applications

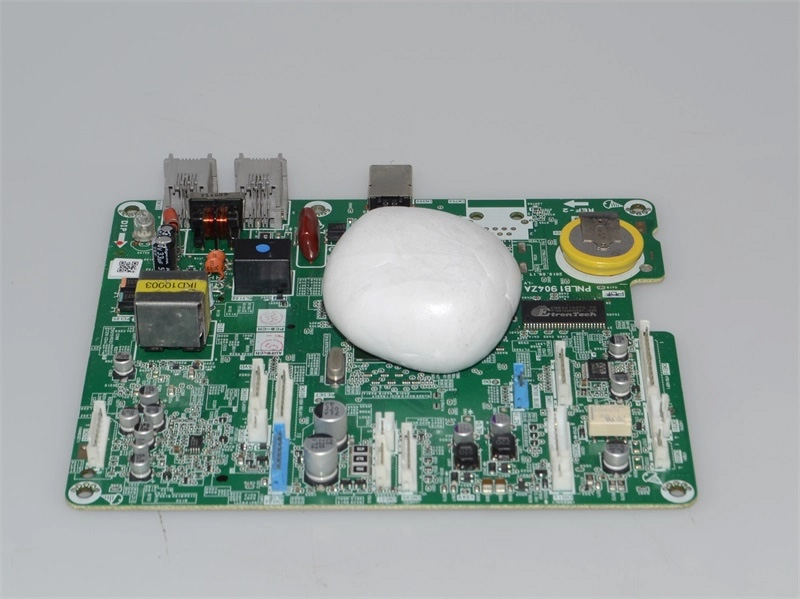

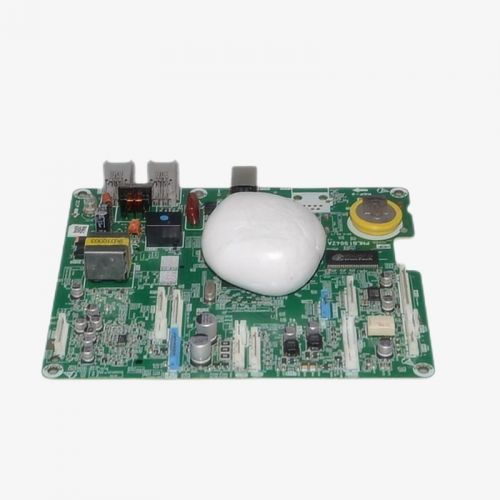

● l Power-supply module, LED products, Engine controller
Technical Data Sheet
Test Item | Unit | Nominal Value | |||||||
TM-10 | TM-20 | TM-30 | TM-40 | TM-50 | TM-60 | TM-70 | TM-80 | ||
Composition material | - | Ceramic + Silicone | |||||||
Color | - | White | Off-white | Grey | Grey | Grey | Grey | Grey | Grey |
Density | g/cc | 2.1±0.1 | 2.7±0.1 | 2.9±0.1 | 3.3±0.1 | 3.3±0.1 | 3.4±0.1 | 3.4±0.1 | 3.5±0.1 |
Extrudability | g/s | 6.5 | 6 | 5 | 2.5 | 2.5 | 2.5 | 1.5 | 1 |
Temperature range | ℃ | -40~150 | -40~150 | -40~150 | -40~150 | -40~150 | -40~150 | -40~150 | -40~150 |
Breakdown voltage | KV/mm | ≥5.0 | ≥5.0 | ≥5.0 | ≥5.0 | ≥5.0 | ≥5.0 | ≥5.0 | ≥5.0 |
Volume resistivity | Ω.cm | 10^14 | 10^14 | 10^14 | 10^14 | 10^14 | 10^14 | 10^14 | 10^14 |
Dielectric constant | @10MHz | ≥5.0 | ≥5.0 | ≥6.0 | ≥6.0 | ≥6.0 | ≥7.0 | ≥7.0 | ≥8.0 |
Fire rating | - | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 |
Thermal conductivity | W/m-k | 1±0.1 | 2±0.2 | 3±0.3 | 4±0.4 | 5±0.5 | 6±0.6 | 7±0.7 | 8±0.8 |
Thermal resistance 0.3mm@50pis | °C-in2/W | 0.2 | 0.18 | 0.15 | 0.1 | 0.08 | 0.08 | 0.07 | 0.05 |
Packing Specification

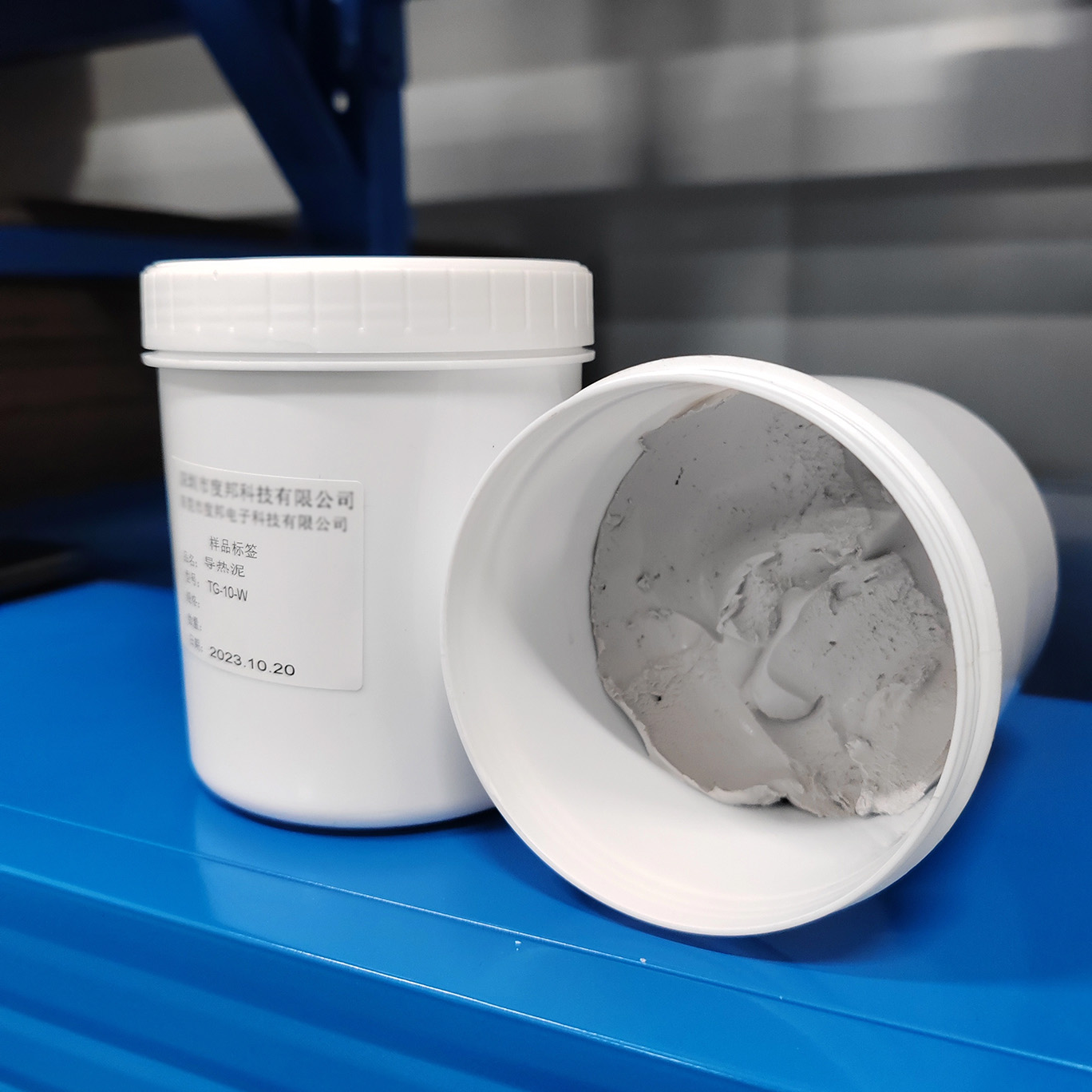

Packed in drums, 1 kg /5 kg /10 kg /20 kg in regular packaging.
Storage: Keep away from light, heat, and seal (can be transported and stored as non-dangerous goods)
