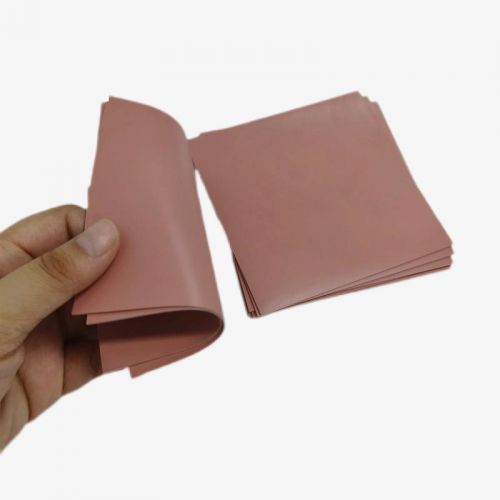

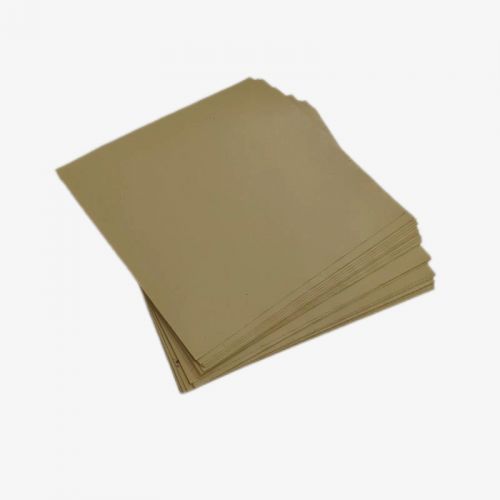

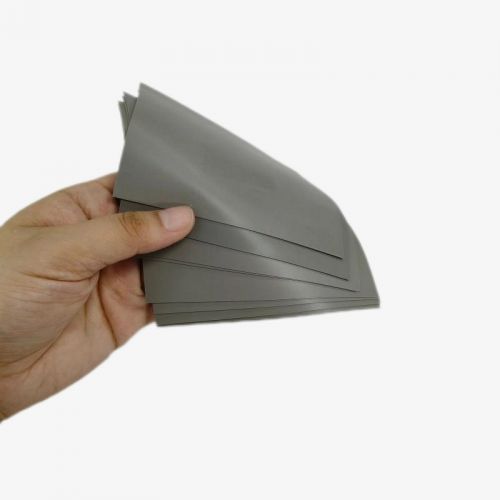

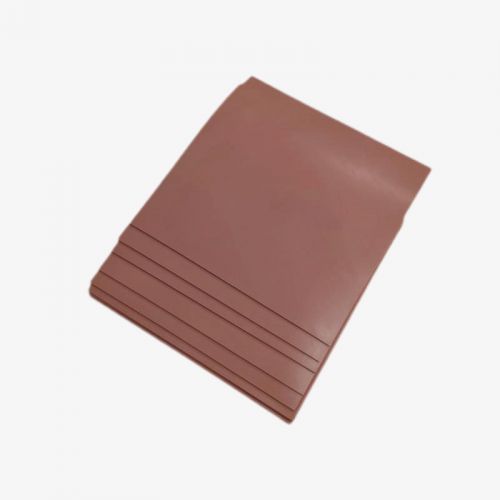

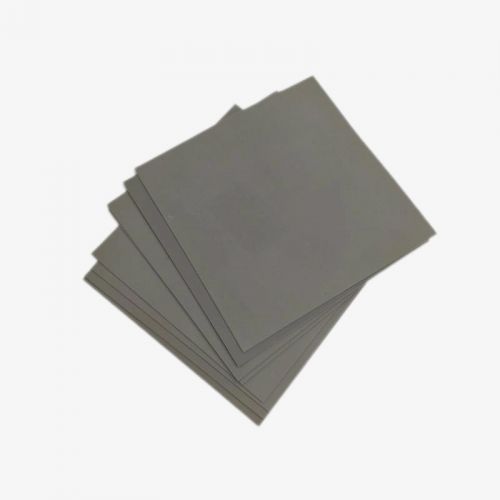

SC series
Thermal Insulation Pad with Fiberglass
SC series thermal insulation silicone pad is a cloth product made of silica gel, fiberglass, insulation film or polyester film substrate through a special process. Because of its excellent thermal conductivity, insulation and convenient assembly, it is widely used in electronic and electrical industries. When in use, according to the size and gap height of the heating interface, the heat-conducting silicon adhesive tape with different thickness is cut and placed in the gap between the heating interface and its components to play the role of heat-conducting medium.
Product Features
● Strong electrical insulation ability.
● Soft, easy to use, clean and more durable than mica.
● Avoid using silicone grease, which is cheaper than ceramics.
● Enhance the ability to resist puncture and tear.
Typical application
● Automation server
● High power supply

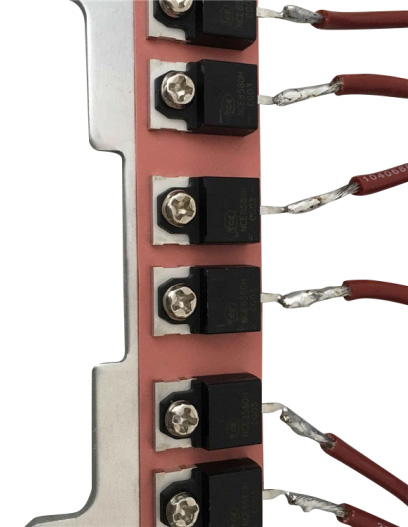

● MOS tube and triode
● Base station
● LED light source module, etc.
Package Specifications

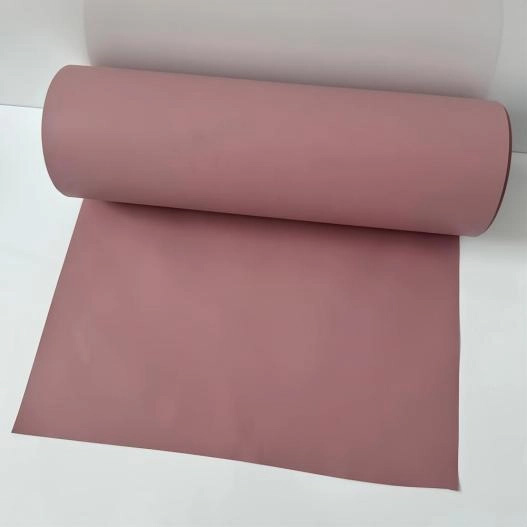

● 50 Meters length per roll can be provided with 300mm or 630mm width, and can also be cut into smaller width;

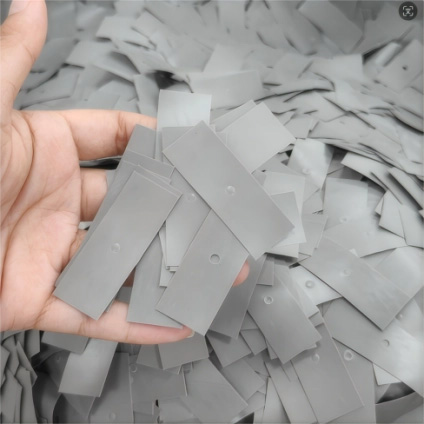

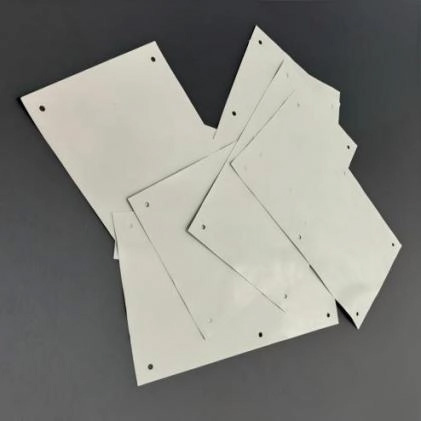

● The sheet can be cut into customized shape.

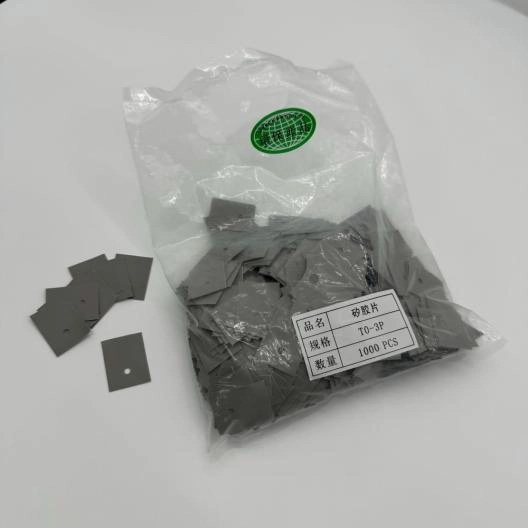

● The regular sheet models are TO-220, TO-3P.
Technical Data Sheet
Test Item | Unit | SC-23 | SC-30 | SC-45 | SC-80 | SC-10 | Test Method |
Color | / | Pink/grey | Gray, pink, blue | Grey | Grey | Pink/grey | Visual |
Thickness | mm | 0.23±0.03 | 0.3±0.03 | 0.45±0.03 | 0.8±0.03 | 1.0±0.03 | ASTM D374 |
Specific gravity | g/cm3 | 1.7±0.1 | 1.7±0.1 | 1.7±0.1 | 1.7±0.1 | 2.0±0.1 | ASTM D792 |
Hardness | Shore A | 85±5 | 85±5 | 85±5 | 85±5 | 85±5 | ASTM D2240 |
Tear strength | kg/cm2 | >180 | >180 | >180 | >180 | >180 | ASTM D412 |
Tear strength | pa | 1.8*1011 | 1.8*1011 | 1.8*1011 | 1.8*1011 | 1.8*10^11 | ASTM D412 |
Temperature range | ℃ | -50~200 | -50~200 | -50~200 | -50~200 | -50~200 | EN344 |
Elongation | % | 3~8 | 3~8 | 3~8 | 3~8 | 3~8 | ASTM D412 |
Voltage resistance | KV | ≥3.0 | ≥4.0 | ≥5.0 | ≥8.0 | ≥10 | ASTM D149 |
Flame retardancy | / | V-0 | V-0 | V-0 | V-0 | V-0 | UL-94 |
Thermal conductivity | w/m-k | 1 | 1 | 1 | 1 | 1 | ASTM D5470 |
