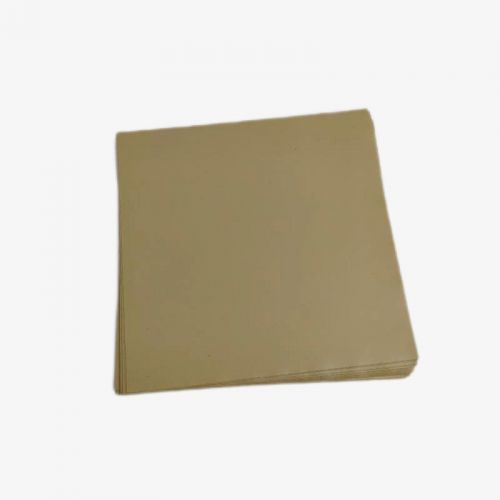

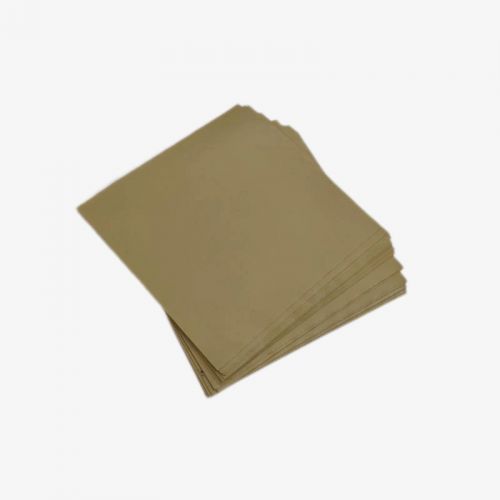

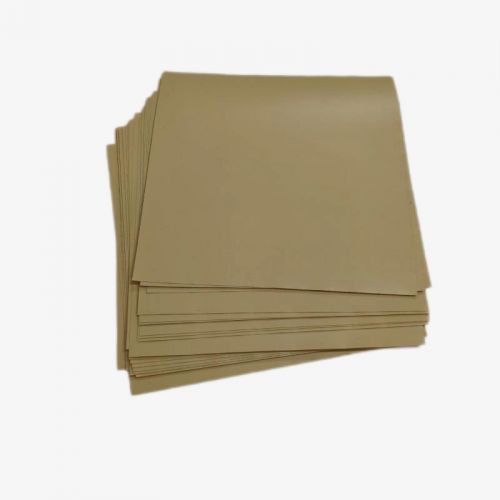

High-Performance K-10 Silicone Insulation Sheet for MOS Tube and Triodes

High-Performance K-10 Silicone Insulation Sheet for MOS Tube and Triodes
Color: yellow
Customization: available
Thickness: 0.15mm
Specific Gravity: 1.7±0.1g/cm3
Hardness： 75±5 Shore C
Thermal Rating: -50~200ºC
Application: Heating Power Device, Fast Power Supply Mode, MOS Tube and Triode, Motor Controller
Color: yellow
Customization: available
Thickness: 0.15mm
Specific Gravity: 1.7±0.1g/cm3
Hardness： 75±5 Shore C
Thermal Rating: -50~200ºC
Application: Heating Power Device, Fast Power Supply Mode, MOS Tube and Triode, Motor Controller
Contact Us
High-Performance K-10 Silicone Insulation Sheet for MOS Tube and Triodes Apply For Quotation

K-10 silicone insulation sheet

Sil-Pad K10 silicone tape is a kind of high-performance elastomer insulating material based on special film, which has excellent cutting resistance and excellent thermal conductivity. It is widely used in electronic appliances and other industries. When in use, according to the size and gap height of the heating interface, heat-conducting silica gel sheets with different thicknesses are selected and cut, and placed in the gap between the heating interface and its components to play the role of heat-conducting medium.

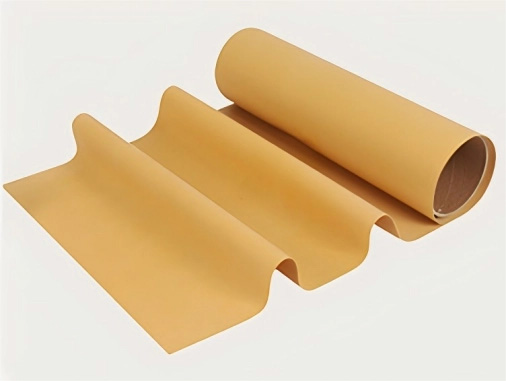

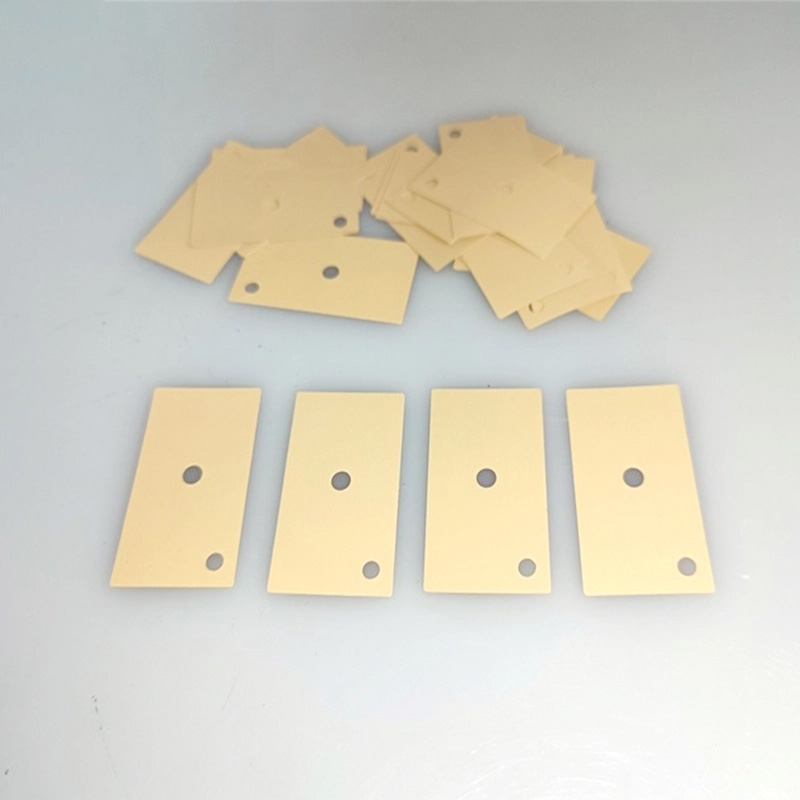

68b6edfcb5710.jpg            68b6ee069ba2a.jpg


Product Features

● Low thermal resistance, thermal resistance 0.41℃-in2/W(@ 50psi)

● High voltage resistance up to 6000V/A substitute for ceramic insulators.

● Good insulation, fire prevention and heat dissipation.


Typical application

● Heating power device

● Fast power supply mode

● MOS tube and triode

● Motor controller


Technical Data Sheet

Test Item

Unit

Standard

Test Method

Color

-

Yellow

Visual

Thickness

mm

0.15mm

ASTM D374

Specific Gravity

g/cm3

1.7±0.1

ASTM D792

Hardness

Shore C

75±5

ASTM D2240

Tensile Strength

MPa

5000

ASTM D412

Compression Ratio

%

40

ASTM D412

Continuous use Temperature

℃

-50~200

EN344

Volume Resistivitv

Ω-CM

≥1012

ASTM D257

Breakdown Voltage

KV/mm

≥6

ASTM D149

Flame Rating

-

V-0

UL-94

Thermal Conductivity

w/m-k

1.3

ASTM D5470
