High - Quality Silicone Rubber Sheet (SP) Boasting Excellent Electrical Insulation

High - Quality Silicone Rubber Sheet (SP) Boasting Excellent Electrical Insulation
Color: white, black
Material: silicone rubber
Thickness: 0.3~10mm
Density: 1.3~1.5g/cm3
Customization: available
Hardness: Shore A 50-70
Temperature Range: -40~220℃
Application: Electrical Power System, Medical Equipment, Transportation
Color: white, black
Material: silicone rubber
Thickness: 0.3~10mm
Density: 1.3~1.5g/cm3
Customization: available
Hardness: Shore A 50-70
Temperature Range: -40~220℃
Application: Electrical Power System, Medical Equipment, Transportation
Contact Us
High - Quality Silicone Rubber Sheet (SP) Boasting Excellent Electrical Insulation Apply For Quotation

SP series

Silicone Rubber Sheet

Silicone Rubber Sheet SP are made of silicone rubber materials. The products are environmentally friendly and healthy and meet ROSH requirements. Silicone Rubber Sheet SP can be used for a long time in the temperature range of -40℃-200℃ and maintain their soft and elastic properties. They have excellent electrical properties and chemical stability, are resistant to water, ozone, and weathering, are non-corrosive, physiologically inert, non-toxic and odorless, have low linear shrinkage, and are easy to operate. It has no thermal conductivity.





Product Features

● Long service life

● Environmentally friendly, non-toxic and odorless

● Good elasticity, soft and comfortable, easy to clean

● Excellent electrical insulation performance

● Excellent high and low temperature resistance

● Stable sealing performance



Typical application

Aerospace, automotive, electrical, pharmaceutical, food processing, Furniture and industrial manufacturing.

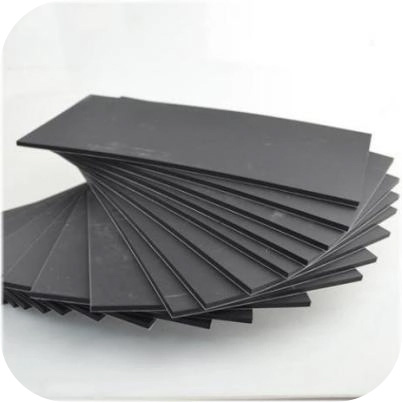

  68b827758edc1.jpg  68b8278283631.jpg


Technical Data Sheet

Test Item

Unit

Standard

Test Method

Color

-----

Cream/Black

Visual

Thickness

mm

0.3-10

ASTM  D374

Density

g/cm3

1.3-1.5

ASTM  D792

Hardness

Shore A

50-70

ASTM  D2240

Tear strength

KN/m

2.3

ASTM  D412

Elongation

%

60

ASTM  D412

Breakdown voltage

Kv/m

≥8.0

ASTM  D149

Volume resistivity

Ω·m

1.7×1013

ASTM  D257

Temperature range

-40~220

EN344

Weight loss

%

≤1

@200℃ 200H

Fire resistance

------

V-0

UL  94
