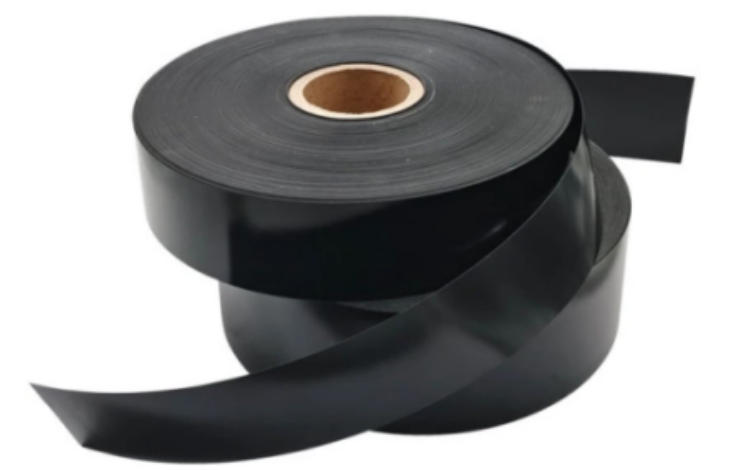

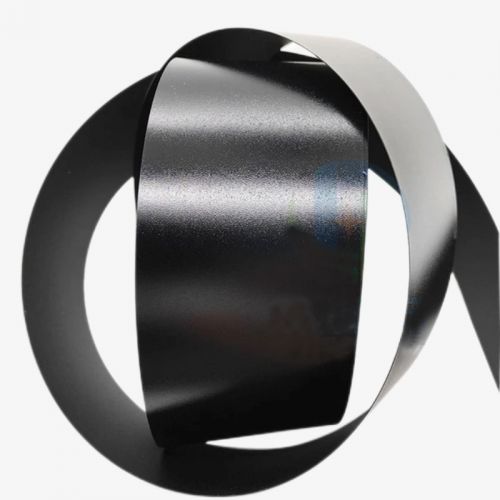

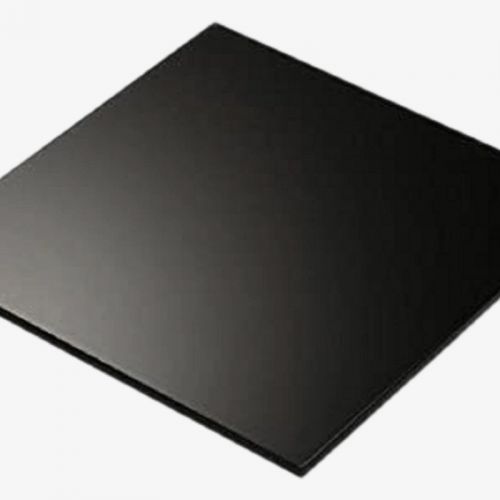

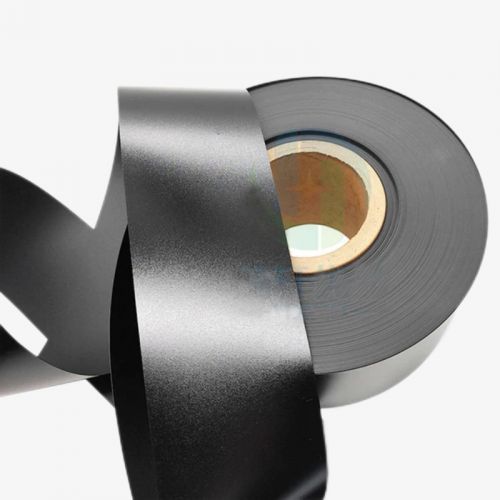

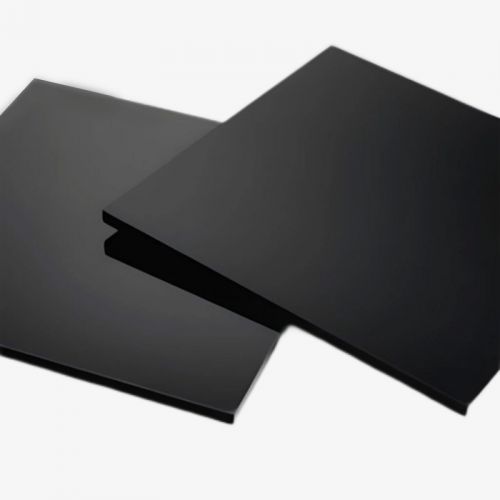

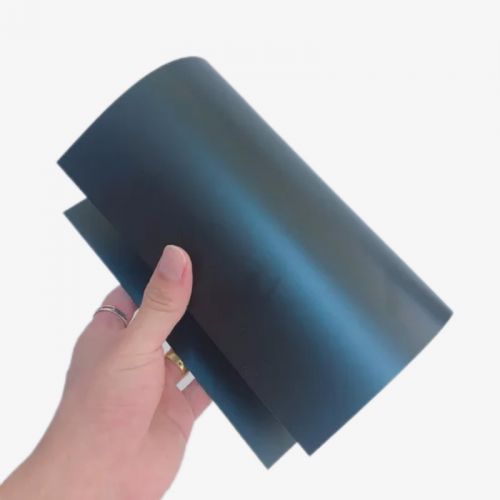

PC Insulating Sheet

PC Insulating Sheet
Color: black
Specific Gravity: ≥1.2 g/cm3
Vicat softening point: ≥138℃
Bending Strength: ≥80 Mpa
Typical Application: electronic and electrical products for insulation and electronic shielding
Color: black
Specific Gravity: ≥1.2 g/cm3
Vicat softening point: ≥138℃
Bending Strength: ≥80 Mpa
Typical Application: electronic and electrical products for insulation and electronic shielding
Contact Us
PC Insulating Sheet Apply For Quotation

PC Insulating Sheet

PC is alloy film made of polycarbonate/polyester in different proportions. PC insulation flame retardant material has excellent insulation, ductility, dimensional stability, chemical corrosion resistance, high strength, heat resistance, cold resistance, self-extinguishing, flame retardant, non-toxic and environmentally friendly.




Applications:

Widely used in various electronic and electrical products for insulation and electronic shielding.



Technical Data Sheet

Test Item

Test Method

Unit

Typical Value

Specific Gravity

ISO1183

g/cm3

≥1.2

Water Absorption Equilibrium,24Hrs

ASTMD570

%

≤0.35

Tensile Strength

ISO527

Mpa

Horizontal≥50; Vertical≥55

Tensile Modulus

ISO527

Mpa

≥2000

Elongation-at-break

ISO527

%

≥80

Bending Strength

ISO178

Mpa

≥80

Vicat softening point

ISO306

≥138

Thermal Expansivity

ISO11359

/℃

≥6.5*10-5

Permittivity

IEC60250

--

≥3.0

Voltage test

IEC60243(DC)

KV

≥20

Surface Resistivity

IEC60093

Ω

≥1012

Volume Resistivity

IEC60093

Ω.cm

≥1013

@≥10mils

ULBULLETIN94

UL94

@﹤ 10mils

ULBULLETIN94

UL94

Thickness tolerance

T>0.5mm, ±3%

0.25<T≤0.5mm,±5%

0.1≤T≤0.25mm,±10%

T<0.1mm, ±0.008mm

Width tolerance

Roll/Sheet material: ±3mm

Length tolerance

Sheet material: ±3mm

Roll material: ±3m

Storage temperature

Temperature: 20±10℃;

Humidity: 50±10%

Shelf life

2 years
