XBH Series

Phase Change Interface Material

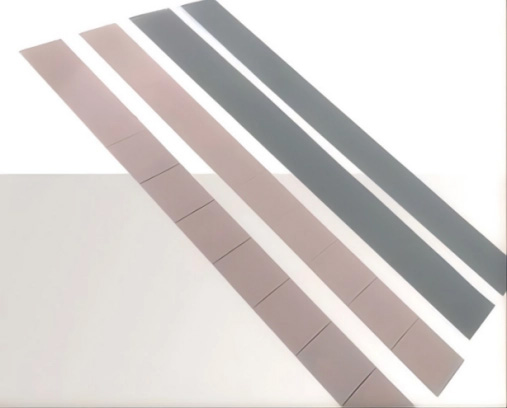

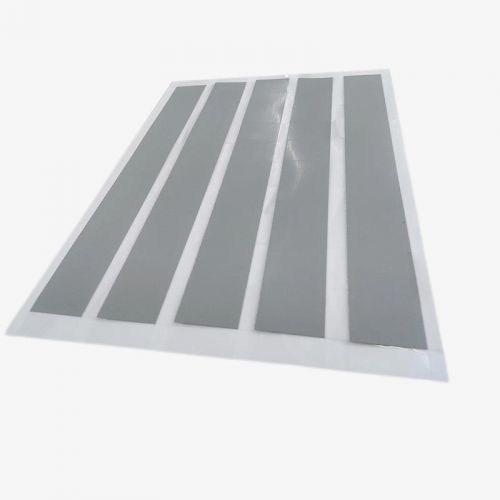

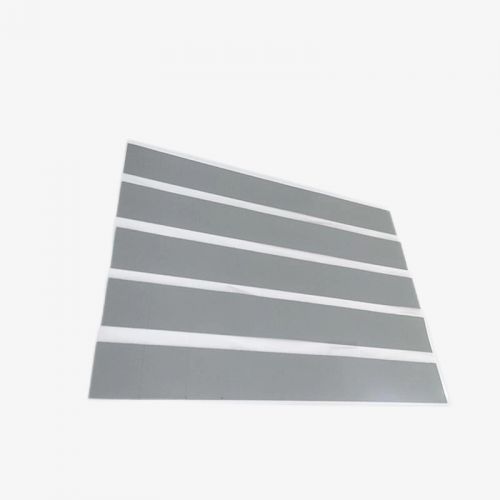

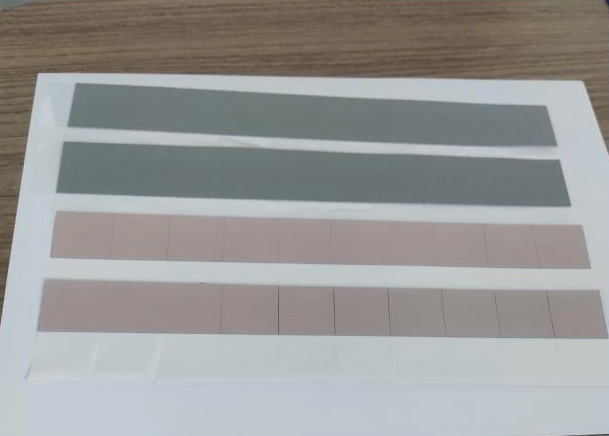

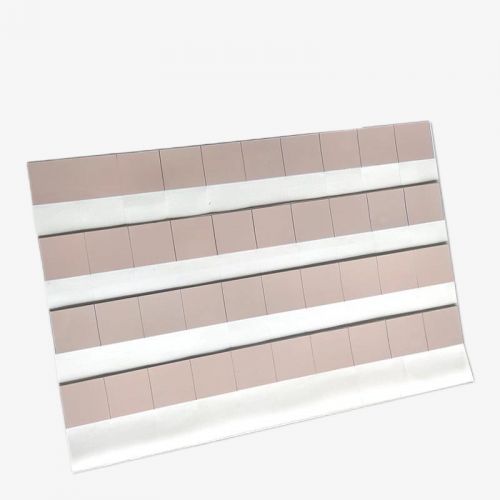

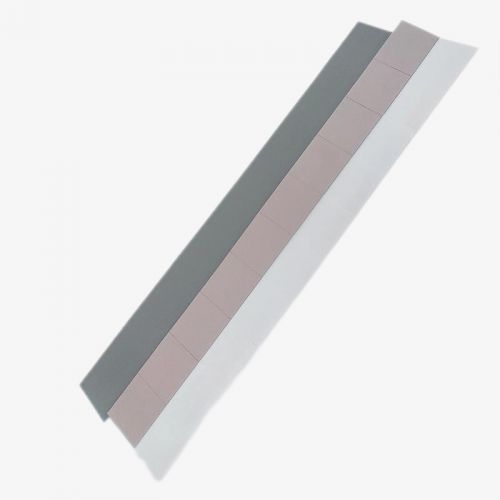

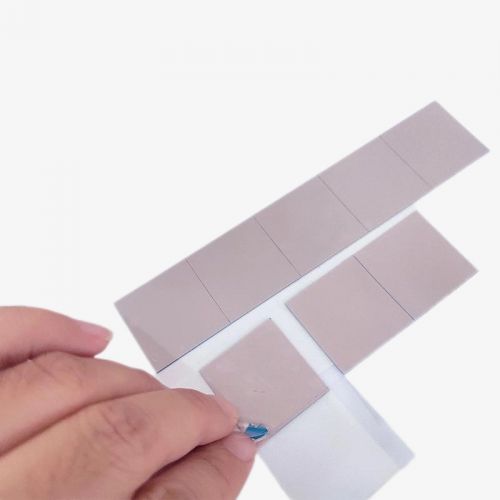

XBH series phase change thermal pad is a solid sheet at room temperature. It is a thermal conductive filling material that has begun to soften at 45-55℃. The thermal conductive phase change material has the special characteristics of softening micro-flow after absorbing heat and recovering the solid shape after cooling. It has excellent wettability and compressibility. It can be cut into various sizes according to customer requirements and attached between the heat sink and the power-consuming electronic device. The filling heat comes from the gap between the heat sinks, which minimizes the thermal resistance.

Product Features

High thermal conductivity, low impedance
Tightly fit irregular device surfaces
Excellent compressibility, excellent wettability, high reliability
Low volatility --- less than 1%

Applications:

Communication equipment
Automotive electronic equipment
Security equipment

Technical Data Sheet

Test Item	Unit	XBH 200	XBH 300	XBH 600	XBH 800	Test Method
Color	/	Grey	Grey	Grey	Grey	Visual
Thermal conductivity	W/m·K	2.0±0.1	3.0±0.3	6.0±0.6	8.0±0.8	ASTM D5470
Thickness	mm	0.13 ~ 0.5	0.13 ~ 0.5	0.13 ~ 0.5	0.13 ~ 0.5	ASTM D374
Transformation temperature	℃	40 ~ 45	40 ~ 45	40 ~ 45	40 ~ 45	/
Density	g/cm³	2.7	3.15	2.8	2.8	ASTM D297
Thermal impedance 10psi/50psi	℃-in/W	0.02~0.05	0.02-0.05	0.003-0.058	0.005-0.058	ASTM D5470
Dielectric coefficient	MHz	3.1	3.1	3.1	3.1	ASTM D150
Volume resistivity	Ω·cm	10¹³	10¹³	10¹³	10¹³	ASTM D257
Working Temperature	℃	-20~120	-20~120	-20~120	-20~120	/

Package and Storage

Packing specifications: 300*400mm sheets, customized size available
Storage validity period: 12 months, storage conditions: temperature: 15℃
Relative humidity: RH<70%
