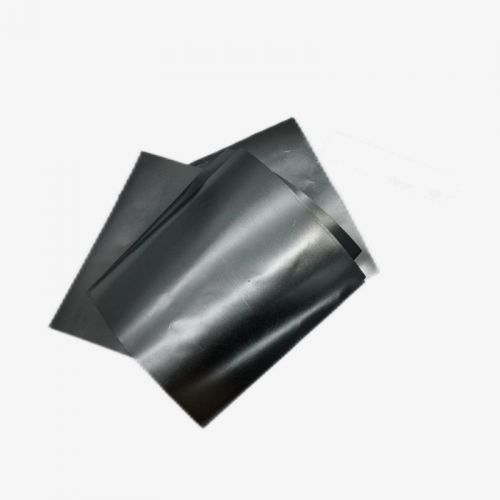

Artificial Graphite Sheet (GSM) for Electronics Heat Dissipation

Artificial Graphite Sheet (GSM) for Electronics Heat Dissipation
Thickness: 0.025~0.07mm
Density: 1.8g/cm3
Feature: High-Thermal Conductivity
Horizontal Thermal Conductivity: 1000~1500 W/m.k
Vertical Thermal Conductivity: 11~15 W/m.k
Customization: available
Hardness: Shore A 80
Temperature Range: -20~400℃
Application: Electron Industry, Medical Equipment
Thickness: 0.025~0.07mm
Density: 1.8g/cm3
Feature: High-Thermal Conductivity
Horizontal Thermal Conductivity: 1000~1500 W/m.k
Vertical Thermal Conductivity: 11~15 W/m.k
Customization: available
Hardness: Shore A 80
Temperature Range: -20~400℃
Application: Electron Industry, Medical Equipment
Contact Us
Artificial Graphite Sheet (GSM) for Electronics Heat Dissipation Apply For Quotation

GS series

Graphite Sheet

Thermal conductive graphite sheet is a brand-new thermal conductive and heat-dissipating material, with unique grain orientation and uniform thermal conductivity in two directions. The lamellar structure can adapt to any surface well, shielding heat sources and components and improving the performance of consumer electronic products. The product evenly dissipates heat and also provides thermal isolation in terms of thickness.Graphite flake can be divided into natural graphite flake and artificial graphite flake.



Product Features

● Fast heat conduction in the horizontal direction, higher than copper and aluminum

● Low thermal resistance, 40% lower than aluminum and 20% lower than copper.

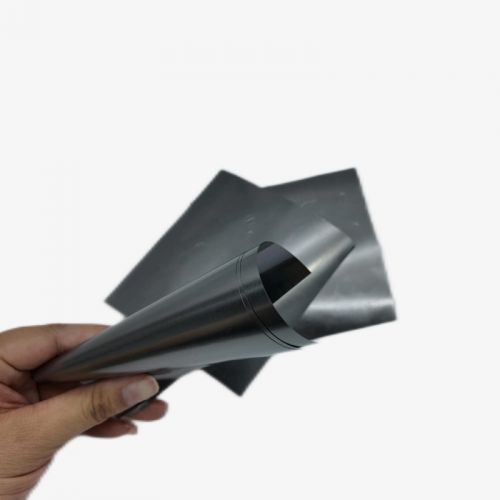

● Soft, ultra-thin, up to 0.025mm, easy to install.

● Light weight, 25% lighter than aluminum and 75% lighter than copper.

● Easy to cut, and can be cut into any size according to customer's needs.

● It can be covered with plastic film for insulation and convenient operation.

● Can be coated with copper foil, aluminum foil and other materials.


Product Structure

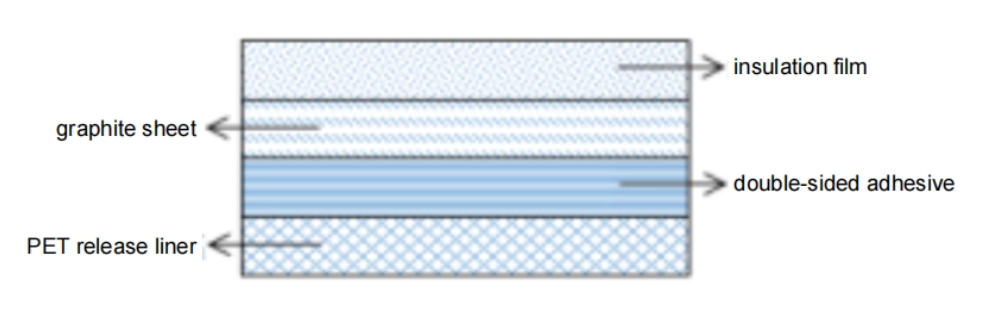

Description of commonly used films structure diagram of thermal conductive graphite sheet



Package and Storage

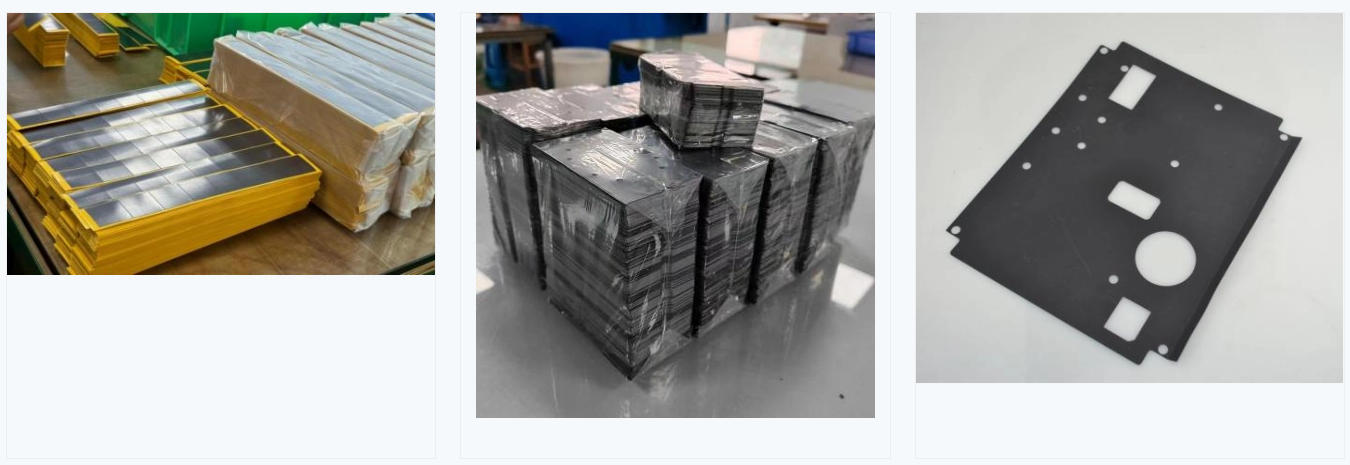

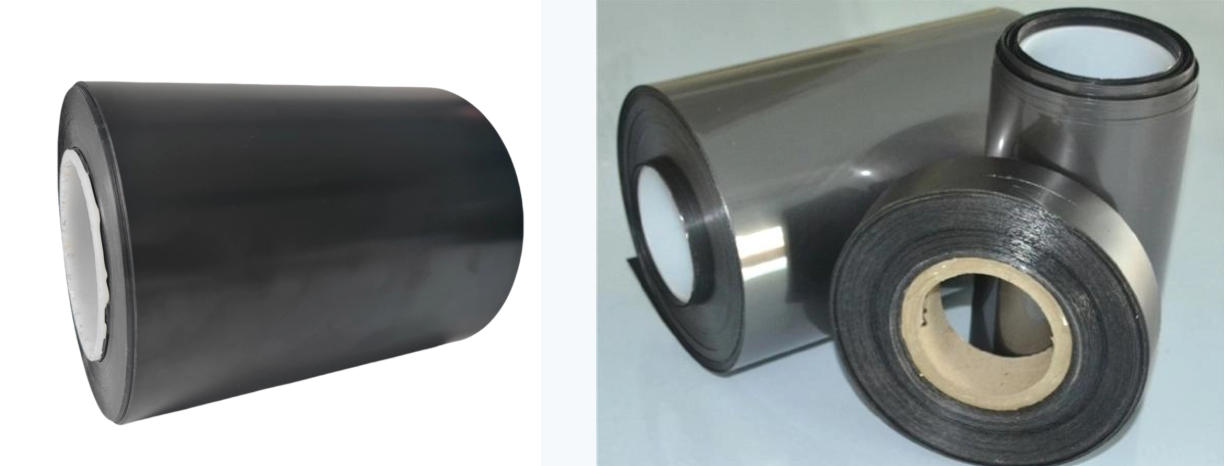

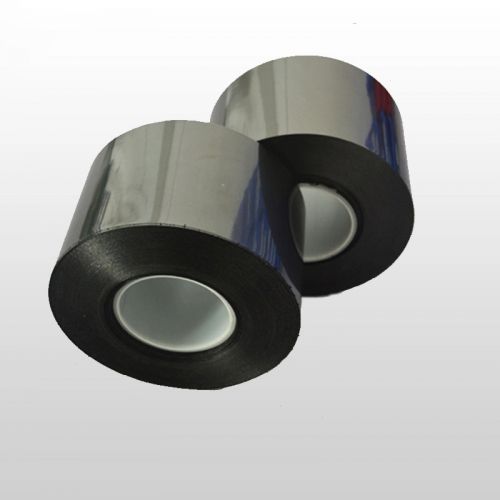

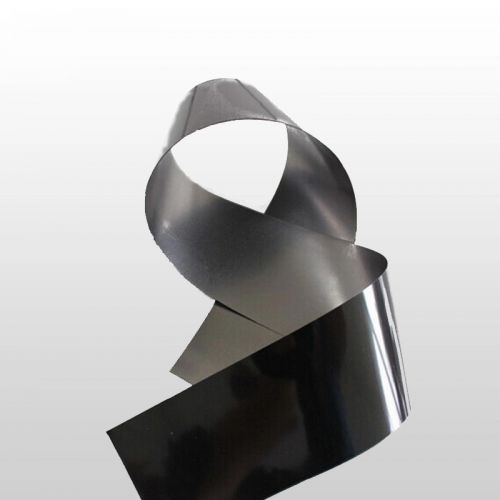

There are bare graphite coils, adhesive-backed graphite coils and film-backed graphite coils; Sheet can be cut into any shape and processed.


Technical Data Sheet

Test item

Unit

Artificial graphite sheet

Natural graphite sheet

Test Method

Thickness

mm

0.025~0.07mm

0.07~2mm

ASTM D374

Specific gravity

g/cm3

1.8±0.2

1.3~1.5

ASTM D792

Temperature resistance

-20~400

-20~400

EN 344

Tensile Strength

Mpa

28

7~10

ASTM F-152

Hardness

Shore A

80

70±5

ASTM D2240

Flame retardant rating

/

V-0

V-0

UL94

Bending properties

R2 1800

>30000 times

>20000 times

N/A

Horizontal thermal conductivity

W/m.k

1000~1500

350~900

ASTM D5470

Vertical thermal conductivity

W/m.k

11~15

6~9

ASTM D5470


Type of insulation film and adhesive on the back of graphite sheet

Model of back membrane

Dorsal membrane color

Thickness

Back glue model

Back glue thickness

P1

Black matt anti-fingerprint

0.015mm

J1

0.01mm

P2

Black bright PET

0.015mm

J2(high viscosity)

0.03mm

P3

Transparent PET

0.03mm

J3

0.05mm
