Nfion

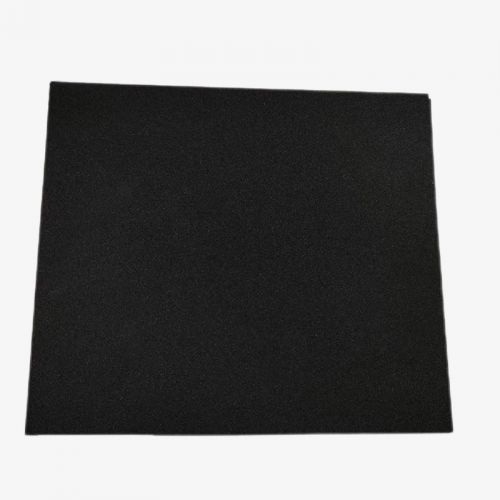

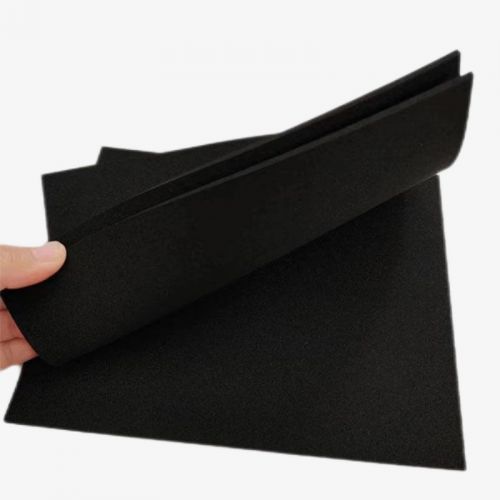

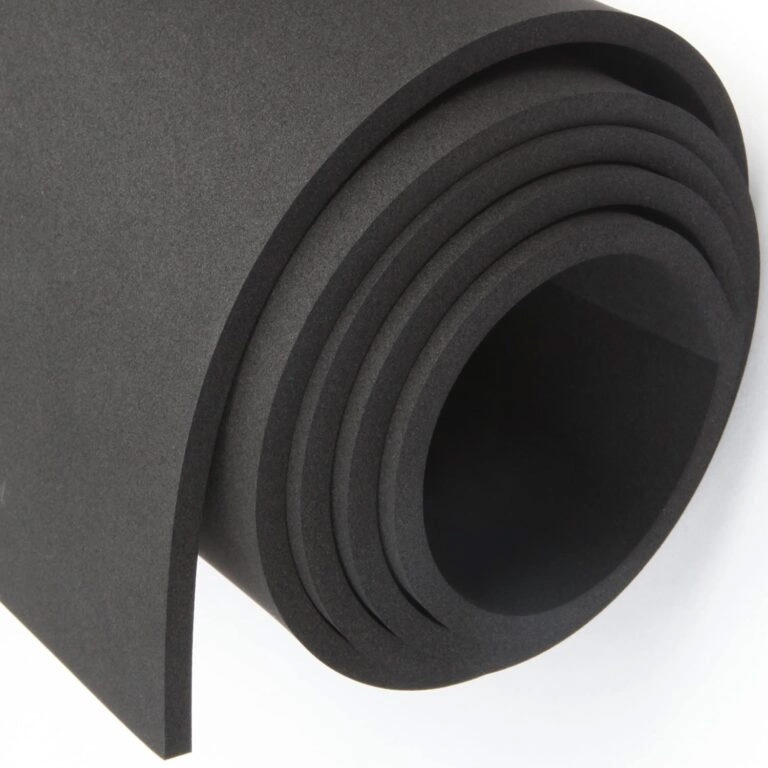

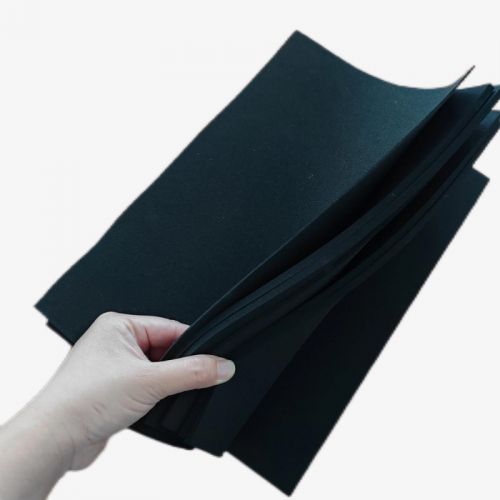

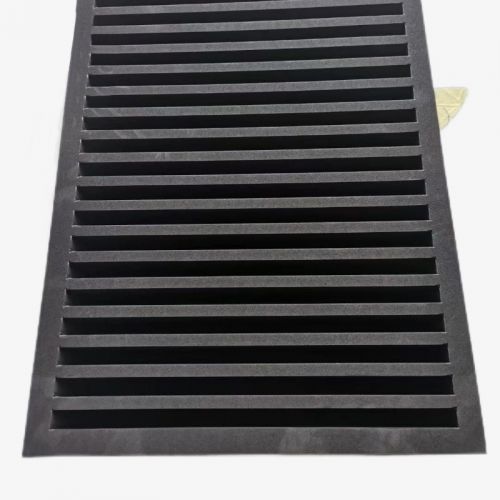

CR Foam Pad

CR Foam Pad
Hardness: Shore c 30±5
Density: 120±30Kg/m3
Tens Tensile strength: ≥0.9Mpa
Water Absorption: ≤20%
Tearing strength: ≥5kn/m
Hardness: Shore c 30±5
Density: 120±30Kg/m3
Tens Tensile strength: ≥0.9Mpa
Water Absorption: ≤20%
Tearing strength: ≥5kn/m
Contact Us
CR Foam Pad Apply For Quotation

CR Foam

CR Rubber or CR Foam is a polymer known as “neoprene” or “chloroprene”.

It is also a diene-based elastomer. CR Foam has good chemical stability & usefulness over a wide temperature range. It also has a good balance of properties. Among the synthetic elastomers, CR Foam has a unique structure with an optimum property balance.




Product Features


Technical Data Sheet

Test Item

Unit

Standard

Test Method

Hardness

Shore C

30±5

ASTM D2240

Density

Kg/m3

120±30

ASTM D3574

Tens  Tensile trength

Mpa

≥0.9

ASTM D412

ElongationRate

%

≥135

ASTM D412

Tearing strength

kn/m

≥5

ASTM D624

Water Absorption

%

≤20

ASTM1056

Compression deflection

%,25%  70℃ 22h 30min

≤25

ASTMD395

Shrinkage

%,70℃ 24HRS

≤3

ISO 188

Flame retardant grade

13MM

/

UL-94 V0

Insulation resistance

2500VDC

/

ASTM D419
