Explore High-Performance 24W Alumina Ceramic Sheets for Advanced Heat Sink Applications

Explore High-Performance 24W Alumina Ceramic Sheets for Advanced Heat Sink Applications
Color: white
Customization: available
Density: 3.9g/cm3
Thermal conductivity (room temperature): 24W/Mk
Hardness (HV): 1650MPa
Long-term operating temperature: 1400℃
Refractory: 2000℃
Typical Application: High power triode &Field-effect tube; Various audio power amplifiermodules (TDA series)
Color: white
Customization: available
Density: 3.9g/cm3
Thermal conductivity (room temperature): 24W/Mk
Hardness (HV): 1650MPa
Long-term operating temperature: 1400℃
Refractory: 2000℃
Typical Application: High power triode &Field-effect tube; Various audio power amplifiermodules (TDA series)
Contact Us
Explore High-Performance 24W Alumina Ceramic Sheets for Advanced Heat Sink Applications Apply For Quotation

TC240 Alumina Thermal Conductive Ceramic Sheet 96%

TC240 alumina thermal conductive ceramic sheet is made of high-purity selected raw materials according to special technology. It has a high thermal conductivity of 24W/m.k. The surface is flat and smooth. When used with silicone grease, it can effectively reduce the contact thermal resistance. It has high strength and is not easy to break. It is resistant to high temperature and high pressure, has high insulation strength, is resistant to acid and alkali corrosion, and is durable.



Product Features

● High thermal conductivity, high insulation strength, high temperature resistance

● High hardness and high strength

● Wear resistance, acid and alkali corrosion resistance

● Simple structure and small size


Typical application

● High power triode &Field-effect tube

● Regulator module (LM78series, LM317 series, Sanyopower supply thick module.source thick module)

● Various audio power amplifiermodules (TDA series)

● High-power SCR module(Omron series) & Integratedrectifer module.

● And other electric heatingelements,

● Heat dissipation and insulationofhigh-power LED lamp circuitboard.

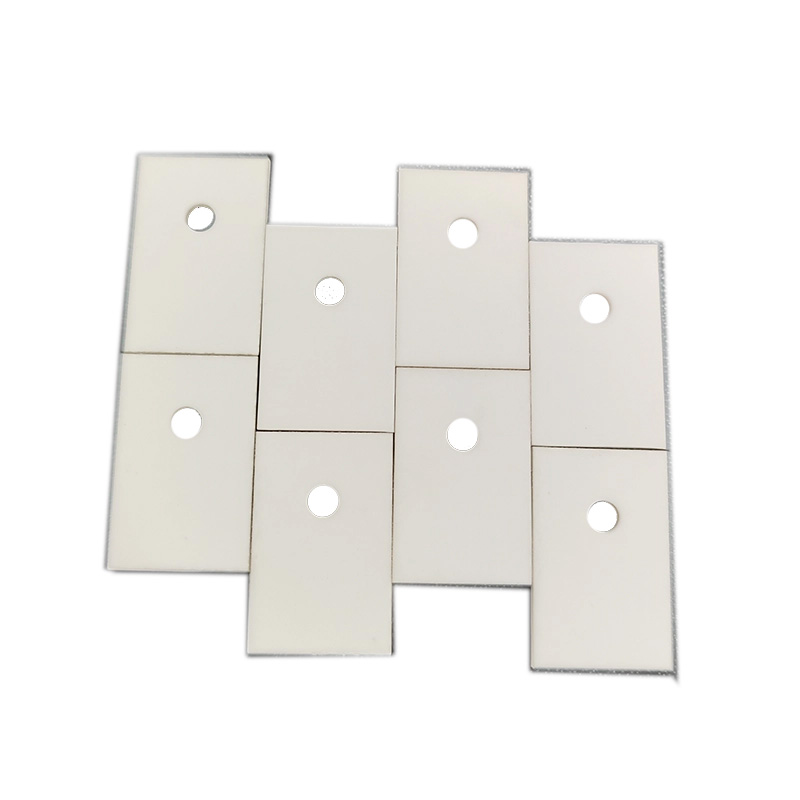

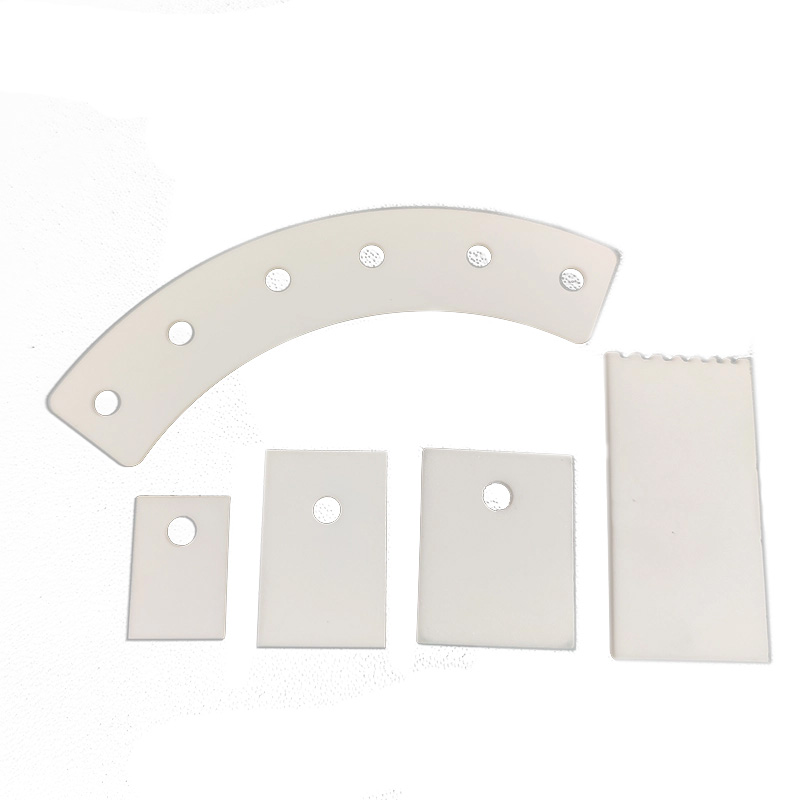

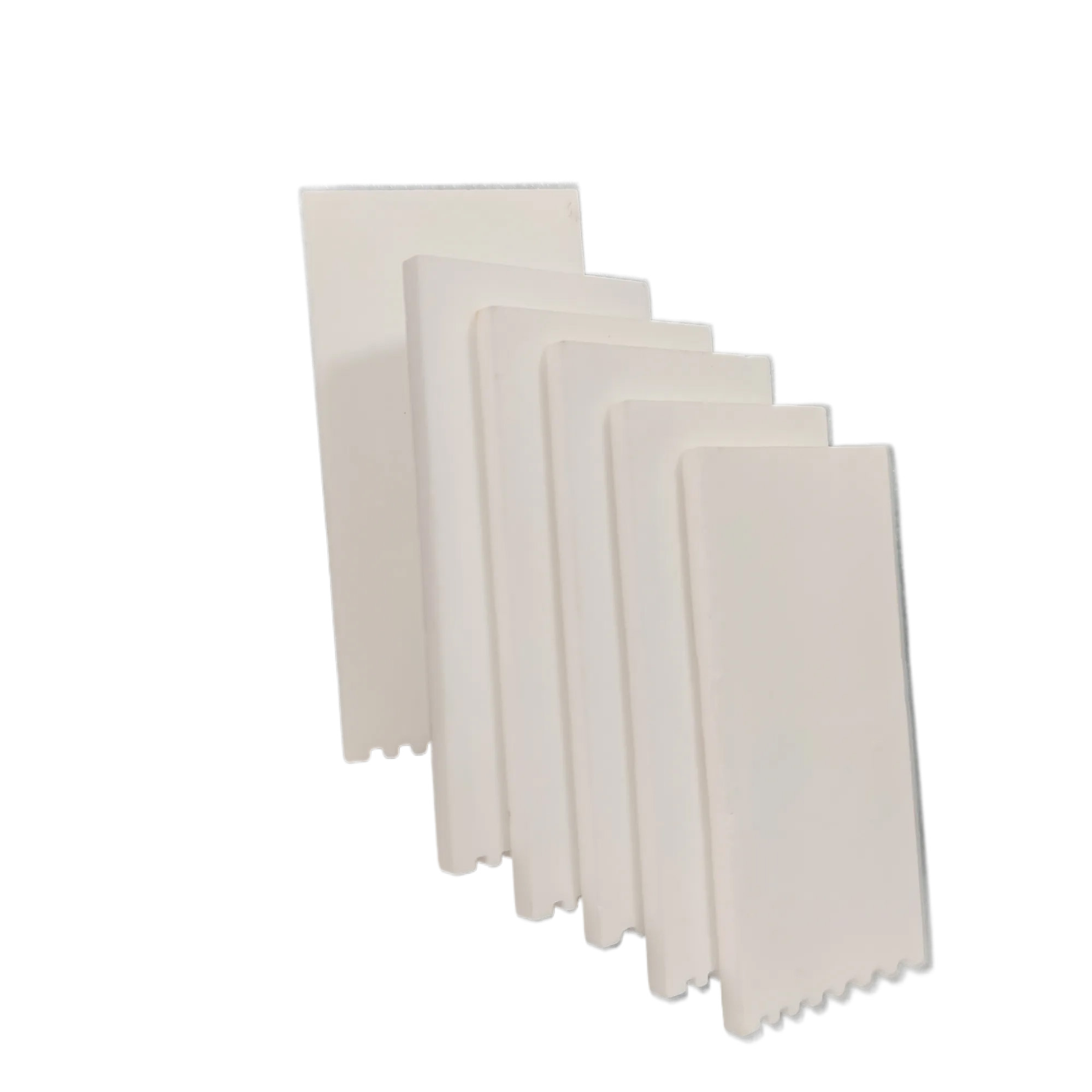

 68b81a2973864.jpg    68b81a38e4532.jpg  68b81a41de2d1.jpg


Technical Data Sheet

Test Item

Unit

96%Al2O3

Density

g/cm3

3.9

Water absorption

%

0

Coefficient of thermal expansion

10-6/K

8.5

Young's modulus of elasticity

GPa

340

Poisson's ratio

-

0.22

Hardness (HV)

MPa

1650

Flexural strength (room temperature)

MPa

310

Compressive strength

MPa

2200

Fracture toughness

MPa'm1/2

4.2

Thermal conductivity (room temperature)

W/m K

24

Insulation strength

KV/mm

10

Long-term operating temperature

1400

Specific resistivity

Ω.mm2/m

>1016

Maximum operating temperature (no load)

1750

Acid and alkali corrosion resistance

Strong

Refractory

2000


Typical Size: TO-220, TO-247, TO-3P and TO-264 are available.

Non-specific specifications can be customized.
